Ultra Compact Fanless PC

Ultra compact fanless PCs are transforming embedded computing by delivering powerful performance in a remarkably small form factor. At EFCO, our fanless PCs operate silently and are built to endure various environments, making them ideal for medical facilities, retail, and industrial automation

New

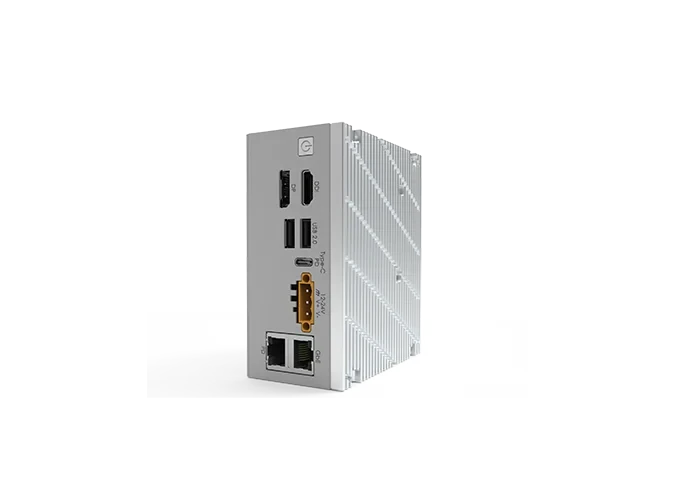

U8-200 Series

■ Ultra-compact form factor: 114 x 94.5 x 51.6mm (4.49″ x 3.72″ x 2.03″)
■ Flexible 3x power input supporting DC-IN, USB Type-C PD, and PoE PD for diverse deployment scenarios
■ Wide-range power input (9V~48V) for industrial environments
■ Rugged cableless and fanless design with DIN-Rail mounting
■ 2x RJ45 LAN ports (1x supporting PoE PD for power + data)
■ 2x M.2 expansion for storage, Wi-Fi, and 5G connectivity
■ 1x USB Type-C with Power Delivery for modern power and connectivity needs
■ Optimized for edge computing, smart factory, and IoT applications

Support Hailo-8 M.2

U8-100 Series

Ultra-slim size: 188×94.5x25mm(7.4″ x 3.72″ x 0.98″)
Wide-Range DC voltage input: 12V ~ 24V
Cableless, fanless system, aluminum alloy structure
2x M.2 slots support storage/Wi-Fi/5G
1x mSATA socket
11-bit programmable GPIO
2x RJ45 GbE
1x USB 3.0/2.0 port, 3x USB 2.0 ports
1x UART RS-232 port

New

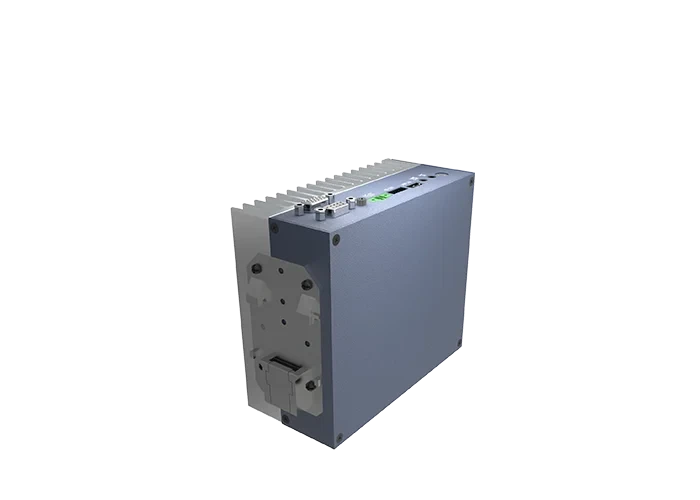

U6-500L Series

■ Ultra-compact size
■ 8th Intel® Core™ processor (Whiskey Lake)
■ Wide-Range DC voltage input: 9V~32V
■ Fanless system, aluminum alloy structure
■ 2x RJ45 GbE Ethernet
■ 2x URAT
■ Multi display: 1x DDI/VGA and 1x DP
■ 2x Mini-PCIe with SIM socket (PCIe + USB + USIM)
■ 1x mSATA socket, 1x 2.5″ drive bay for HDD/SSD
■ 8-bit programmable GPIO

Up-500 Series

Intel® Atom® x6000, Intel® Pentium®, and Celeron® J processor series
Low Power CPUs from 6 to 12Watt TDP
Enhanced Intel HD Graphics Generation 11
Extended Temperature variants for harsh environments
Long life components for 24/7 embedded use
Options for Time Sensitive Networking and Time Coordinated Computing for improved Realtime Capability

U6-500 Series

■ Ultra-compact size: 229.8x129x64.9mm
■ 8th Intel® Core™ processor (Whiskey Lake)
■ Wide-Range DC voltage input: 9V~32V
■ Fanless system, aluminum alloy structure
■ 6x RJ45 GbE Ethernet
■ 1x RS-232/422/485, 5x RS-232
■ Multi display: 1x DDI and 1x DP
■ 2x Mini-PCIe with SIM socket (PCIe + USB + USIM)
■ 1x mSATA socket, 1x 2.5″ drive bay for HDD/SSD
■ 16-bit programmable GPIO

U7-100 Series

Ultra-slim size: 173 x 88 x 21.7mm (6.81″ x 3.46″ x 0.85″)
Wide-Range DC voltage input: 9V~32V
Cableless, fanless system, aluminum alloy structure
2x Mini-PCIe with USIM socket
1x mSATA socket
16-bit programmable GPIO
2x RJ45 GbE
1x USB 3.0/2.0 port, 4x USB 2.0 ports
1x UART RS-232 port
