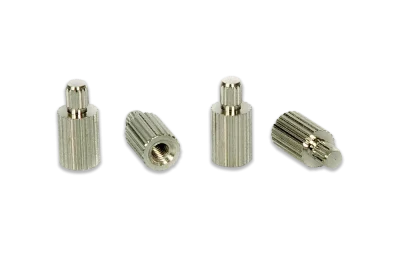

SMARC Solder Mode

SMARC Carrier Board Standoff

Selection Guide


EFCO Part Number	Part Name	Board to Board Height	Thread Size (A)	Head Length (C)	Thread Length (D)	Length (H)
40100-A00028-B.0	ECM00863-L	2.7mm	M2.5	2.7mm	2mm	6.6mm
40100-A00030-B.0	ECM00870-L	5mm	M2.5	5mm	3.5mm	8.6mm
40100-A00067-B.0	ECM02491-L	11.1mm	M2.5	11.1mm	8mm	14.7mm

*EFCO offers Standoff Customization Service

Download

ECM00863-L_Solder Mode Standoff

ECM00870-L_Solder Mode Standoff

ECM02491-L_Solder Mode Standoff
